Position Center Link

1.
   PY23265-UN-08FEB15

   Center Link


   PY23270-UN-06FEB15

   Implement (Mast Height)

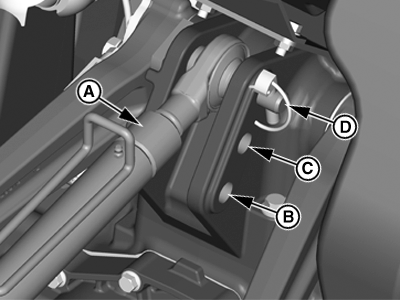

   A - Center Link

   B - Bottom Hole

   C - Middle Hole

   D - Top Hole

   Selection of Hole (B,C or D) will help in adjustment of implement mast inclination as per application requirement.

---




2. During transport, if maximum ground clearance is required, then the bottom hole "B" should be used along with shortest length of the center link.

Standard position is (C).

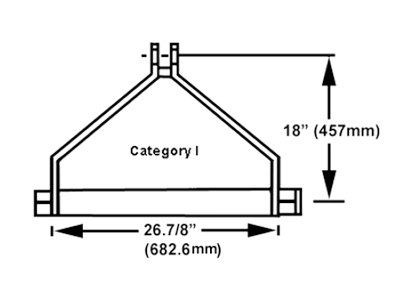

NOTE: Implements with Category I, mast height 457 mm (18 in.) will use the upper two holes.
