Clean Grille, Screens and Radiator

1.
   TS266-UN-23AUG88


   PY22060-UN-19NOV14


   PY22061-UN-19NOV14

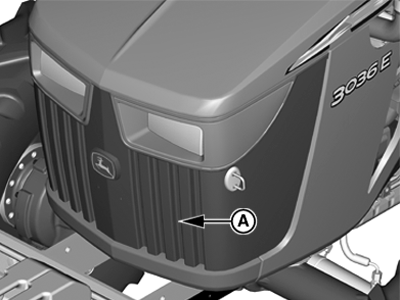

   A - Grille

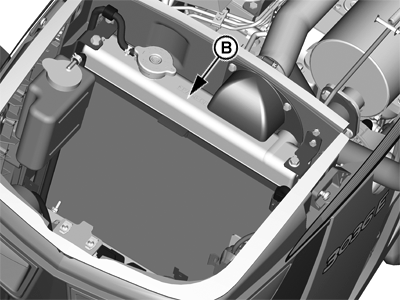

   B - Radiator

   Whenever trash builds up on front grille (A), stop the engine.

---




2. Raise hood and see if trash has built up on radiator (B). If so, remove it using a brush or compressed air.

   CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

3. If a more, thorough cleaning is necessary, clean radiator from behind with compressed air or water. Straighten any bent fins.
