Check Transmission-Hydraulic Oil Level

1. Park the tractor on a level surface with the engine SHUT-OFF and the parking brake "ON" and implement lowered to the ground.

2. Allow time for transmission oil to cool. Transmission oil must be cold to get an accurate reading.

3.
   PY22050-UN-17NOV14


   PY23297-UN-17FEB15

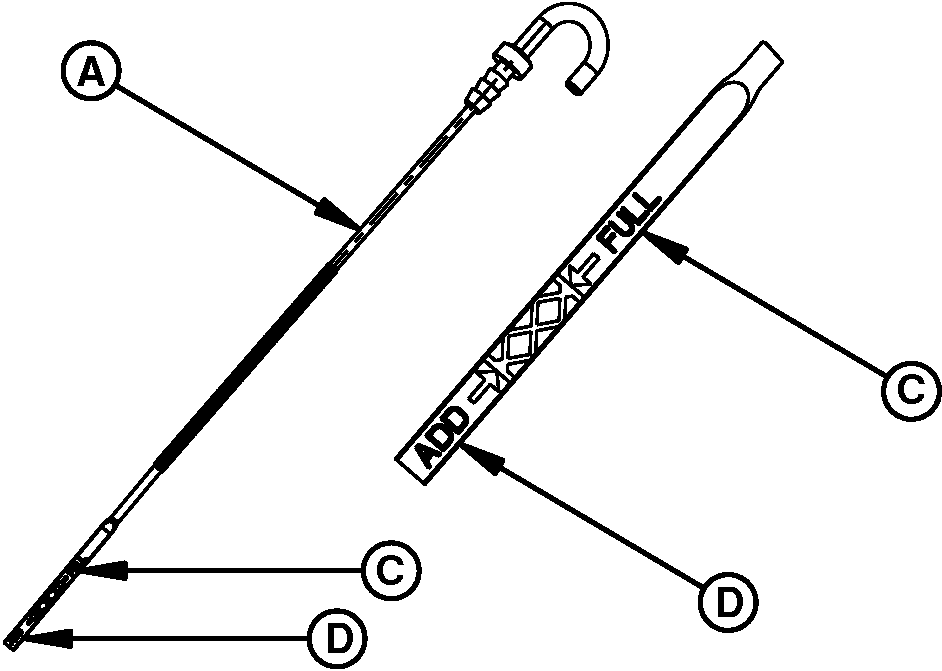

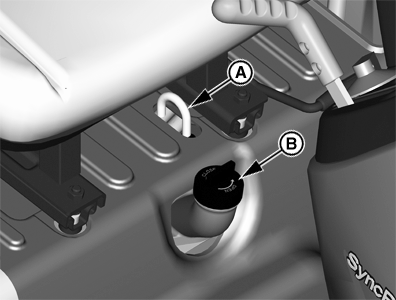

   A - Dipstick, Transmission-Hydraulic Oil

   B - Transmission Oil Filler Cap

   C - ADD Mark

   D - FULL Mark

   Remove dipstick (A) located below the operator seat. Wipe dipstick with a clean rag. Install dipstick and then remove to check oil level.

---




4. IMPORTANT: Avoid damage! DO NOT overfill transmission. Oil expands during operation and could overflow.

   Oil level should be in between ADD (D) and FULL (C) mark as shown on dipstick.

5. If oil level is below the ADD mark, add oil through oil filler cap (B) until even the FULL mark.

   NOTE: Add Low Viscosity HY-GARD® (JDM J20C) or equivalent.
