Change Transmission-Hydraulic Oil and Filter

IMPORTANT: Change transmission-hydraulic oil filter after the first 100 hours of operation and then at every 500 hours of operation thereafter. Change transmission oil every 1250 hours of operation. Replace the transmission-hydraulic oil filter at the same time.

1. Park the tractor on a level surface with the engine SHUT-OFF and the parking brake "ON".

2. Lower the implement to the ground to remove trapped oil.

3.
   PY23283-UN-11FEB15


   PY23302-UN-25FEB15


   PY23303-UN-25FEB15

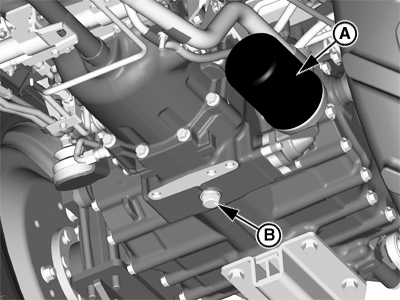

   A - Transmission / Hydraulic Oil Filter

   B - Drain Plug, Transmission Case

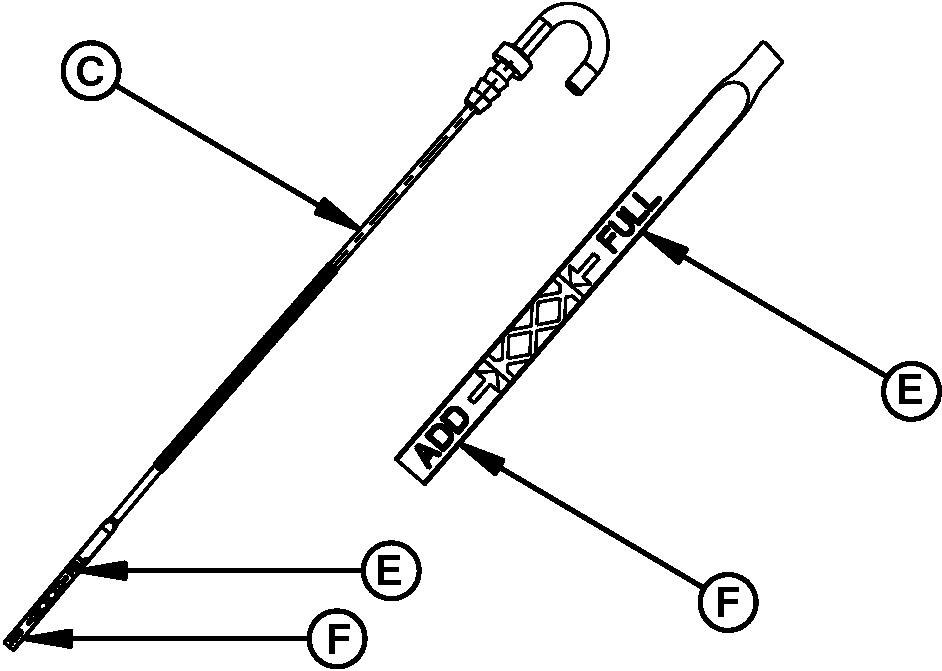

   C - Dipstick, Transmission / Hydraulic Oil

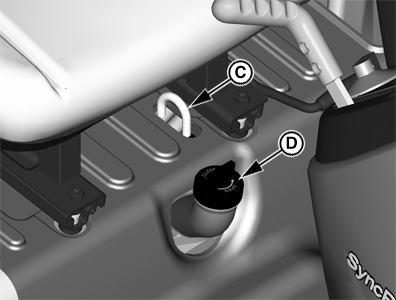

   D - Transmission Oil Filler Cap

   E - Full Mark

   F - Add Mark

   Remove transmission case drain plug (B) and drain oil into suitable container.

---




4. Reinstall drain plug (B) as per specification.

   Item	Measurement	Specification
   	Torque	50±10 N·m (36.87 lb.-ft.)

5. NOTE: Always replace oil filter (A) while changing transmission-hydraulic oil.

   Remove oil filter (A) with the help of oil filter wrench.

6. Apply a film of oil to new filter O-ring and install new oil filter (A). Hand tighten plus 1/2 turn with oil filter wrench.

7. Open transmission oil filler cap (D) and fill system with transmission-hydraulic oil. (See Fuels, Lubricants and Coolant section.)

8. Check oil level on dipstick (C) after filling oil. Oil level should be up to full level mark (E) as shown. Add transmission-hydraulic oil if necessary.

   IMPORTANT: Avoid damage! DO NOT overfill transmission. Oil expands during operation and could overflow.

   NOTE: Add Low Viscosity HY-GARD® (JDM J20C) or equivalent.
