Replace Engine Oil and Engine Oil Filter

IMPORTANT: Change engine oil after initial first 100 hours of operation and then at every 250 hours thereafter. Replace the engine oil filter at the same time.

1.
   PY22047-UN-04MAR15


   PY22048-UN-17NOV14


   PY22046-UN-14NOV14

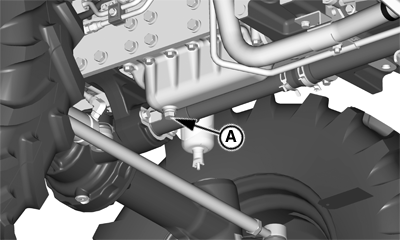

   A - Engine Oil Drain Plug

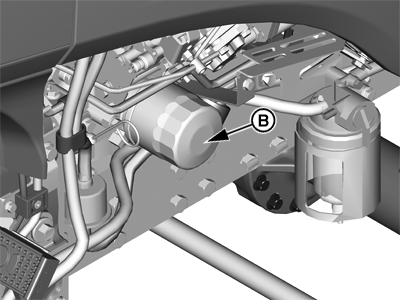

   B - Engine Oil Filter

   Run engine for few minutes to warm engine oil.

---




2. Park the tractor on a level surface with the engine SHUT-OFF and the parking brake "ON" and implement lowered to the ground.

3. Remove oil drain plug (A) and drain oil.

4. Remove engine oil filter (B). Turn filter counterclockwise to remove.

5. Apply a film of clean engine oil on rubber gasket of new filter. Install new engine oil filter (B). Turn filter to the right until gasket makes contact with the mounting surface. Tighten 1/2 to 3/4 turn after gasket contact.

6. Install and tighten drain plug (A) as per specification.

   Item	Measurement	Specification
   	Torque	54 N·m to 64 N·m

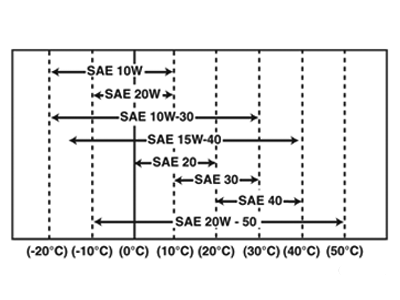

7. Remove oil filler cap (C) and add seasonal viscosity grade oil. For detailed information see section Fuels, Lubricants and Coolant Install and tighten oil fill cap (C).

   Item	Measurement	Specification
   Engine Oil Pan Capacity	Capacity—Dipstick Upper Limit / Dipstick Lower Limit	3.9 L (4.12 qt.) 2.3 L (2.43 qt.)

8. Start engine and run at a slow speed and check for leaks.

9. Stop engine and check Engine oil level. For detailed information refer Check Engine Oil Level in this section.
