Priming the Fuel System

The fuel system needs to be primed under certain conditions:

• Before starting the engine for the first time.
• After running out of fuel and fuel has been added to the fuel tank
• After fuel system maintenance such as changing the fuel filter and draining the water separator, or replacing a fuel system component.

To prime the fuel system:

1.

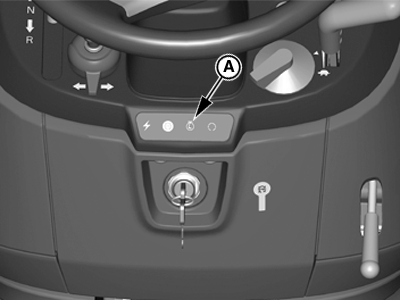

   PY23231-UN-27JAN15

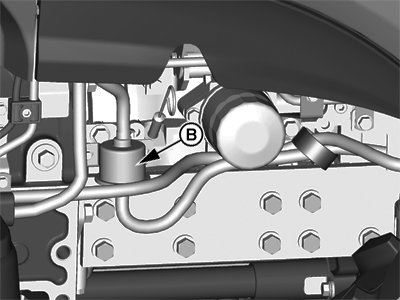

   PY23232-UN-20JAN15

   A - Switch, Key Ignition

   B - Electric Fuel Pump

   Turn the key to the ON position for 10 to 15 seconds. This will allow the electric fuel pump to prime the fuel system.

---




2. NEVER use the starter motor to crank the engine in order to prime the fuel system. This may cause the starter motor to overheat and damage the coils, pinion and /or ring gear.
