Check Engine Oil Level

1. NOTE: Park the tractor on a level surface with the engine SHUT-OFF and the parking brake "ON" and implement lowered to the ground.


   PY22022-UN-03NOV14


   PY22023-UN-25FEB15

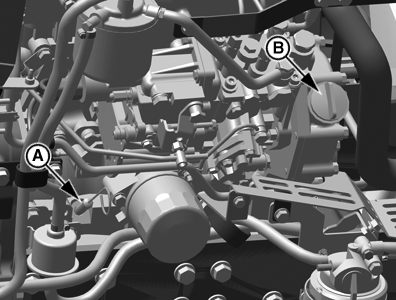

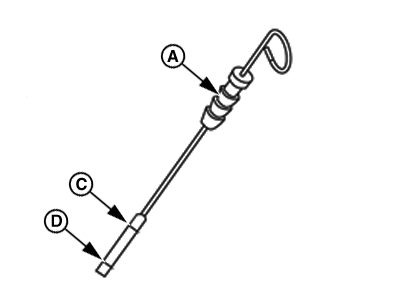

   A - Engine Oil Dipstick

   B - Engine Oil Filler Port

   C - Upper Mark

   D - Lower Mark

   Remove dipstick (A), wipe with clean cloth and reinsert fully. Pull out it again and check oil level.

---




2. Oil level should be between upper mark (C) and lower mark (D) as shown on the dipstick. Engine operation is safe when the oil level is between the upper and lower marks (C and D) on dipstick.

   IMPORTANT: DO NOT operate engine when oil level is below LOWER mark on dipstick.

3. If oil level is low, add oil through oil filler port (B) until even with upper mark. DO NOT overfill.
