Ballast Front End for Transport

CAUTION: Additional front ballast may be needed for transporting rear-mounted implements. When implement is raised, drive slowly over rough ground, regardless of how much ballast is used.

CAUTION: Weights are heavy. Use proper lifting equipment. Approximate weight of Front Bumper (A) is : 13.5 kg (29.76 lb.). Approximate weight of each Ballast weight (B) is 32 kg (70.54 lb.).

Item	Measurement	Specification
Front Bumper	Weight	13.5 kg (29.76 lb.).
Ballast Weight	Weight	32 kg (70.54 lb.).

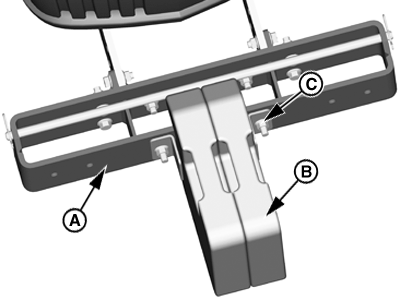

PY22512-UN-03MAR15

A - Front Weight Bracket

B - Ballast Weight

C - Screw and Flange Nut (12 Used)

Installing Weights: Up to 10 weights can be installed on the front bumper of the tractor as per requirement.

1. Install weights (B) in pairs, on front bumper (A).

2. To hold weights (B) in place, tight the screw and flange nut (C) to the specification.

   Item	Measurement	Specification
   Ballast Weights Screw	Torque	198 N·m (146 lb.-ft.)
