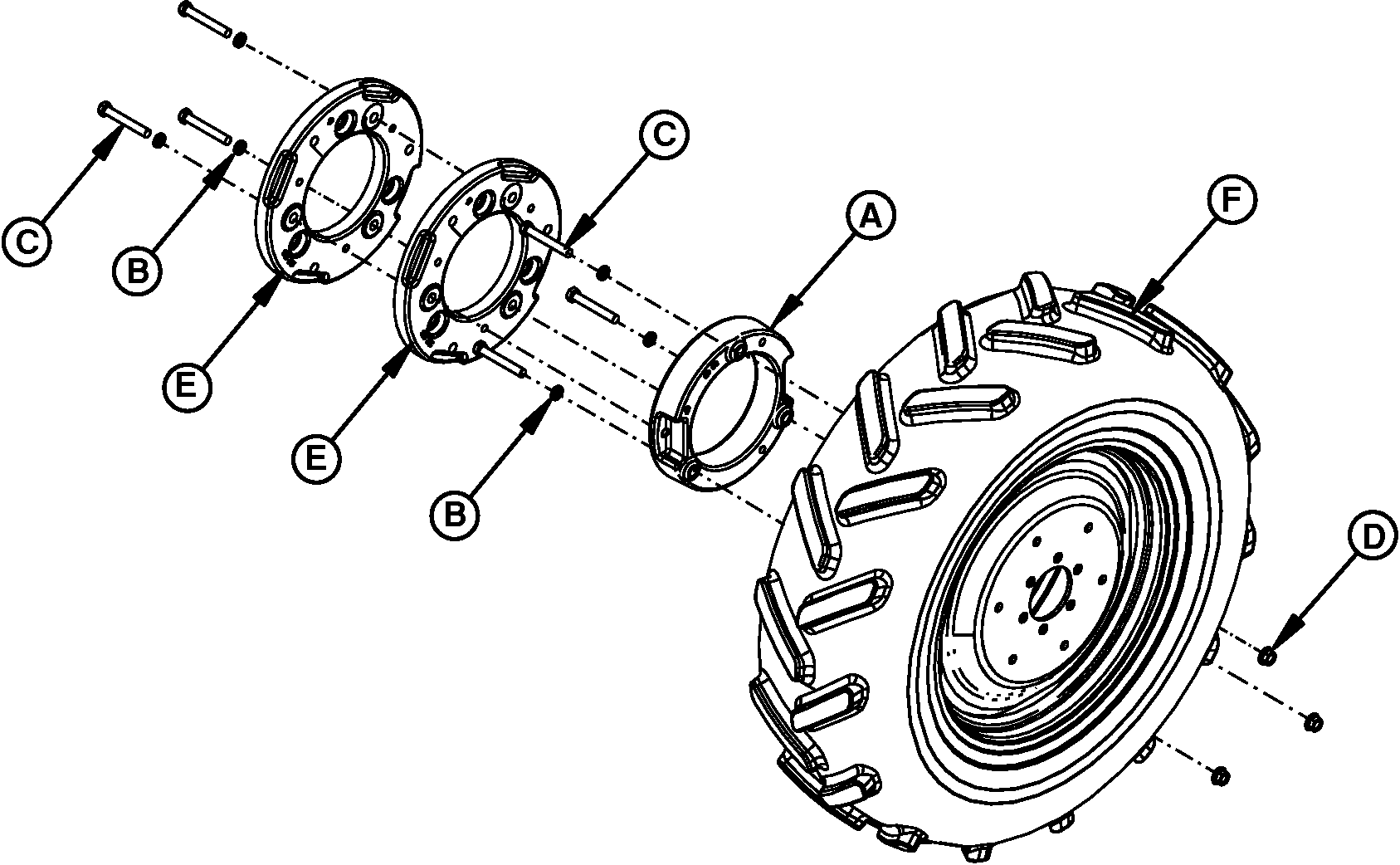

Install Rear Wheel Weights

PY22514-UN-04MAR15

A - Starter Weight (2 Used)

B - Lock Washer (12 Used)

C - Cap Screw (12 Used)

D - Flange Nut (6 Used)

E - Rear Weight (2 Used)

F - Rear Wheel (2 Used)

CAUTION: Weights are heavy. Use proper lifting equipment. Approximate weight of starter weight (A) is 20 kg and additional rear weight (E) is 22 kg.

1. Install starter weight (A) on rear wheel with the help of cap screw (B), lock washer (C) and flange nut (D).

2. To install rear wheel weights (E) and rotate to align cap screw (B) with holes on starter weight holes (A).

3. Tight all the attaching cap screw (B) and lock washer (C) securely as per the specification.

   Item	Measurement	Specification
   Starter Weight Mounting Cap Screw	Torque	320 N·m (236 lb.-ft.)
   Rear Weight Mounting Cap Screw	Torque	320 N·m (236 lb.-ft.)

   NOTE: Daily check the tightness of weight mounting nuts.
