Remove Hood

1.

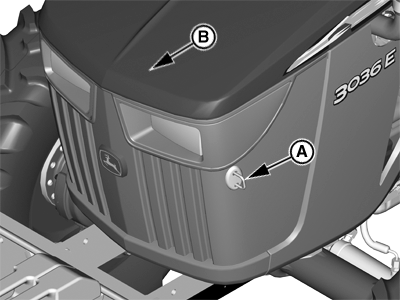

   PY22031-UN-19JAN15

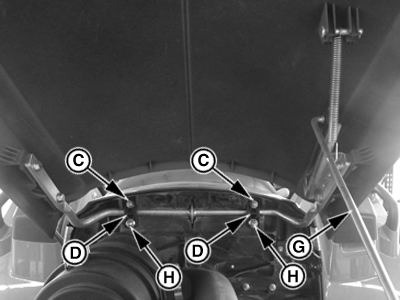

   PY23224-UN-10FEB15

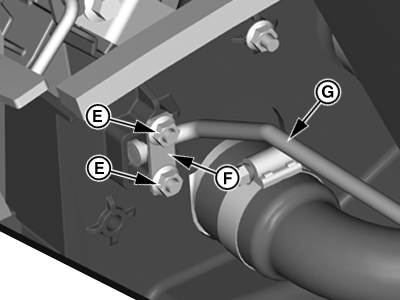

   PY23227-UN-19JAN15

   A - Hood Latch Release

   B - Hood

   C - Lock Nut (4 Used)

   D - Hood Pivot (2 Used)

   E - Flange Nut (2 Used)

   F - Plate

   G - Stay Rod, Hood

   H - U- clamp (2 Used)

   Pull hood latch release (A) out to unlock hood and raise hood (B).

---




2. Remove lock nut (C) and clamp (D).

3. Remove flange nut (E), plate (F) and hood stay rod (G) as shown.

4. Remove complete hood assembly from tractor.

   IMPORTANT: To avoid falling of U- bolt into the front console, hand tighten the lock nut (C) to the U- bolt (H) after removal of hood assembly.
