Air Intake System Components

PY23228
PY23228-UN-10FEB15

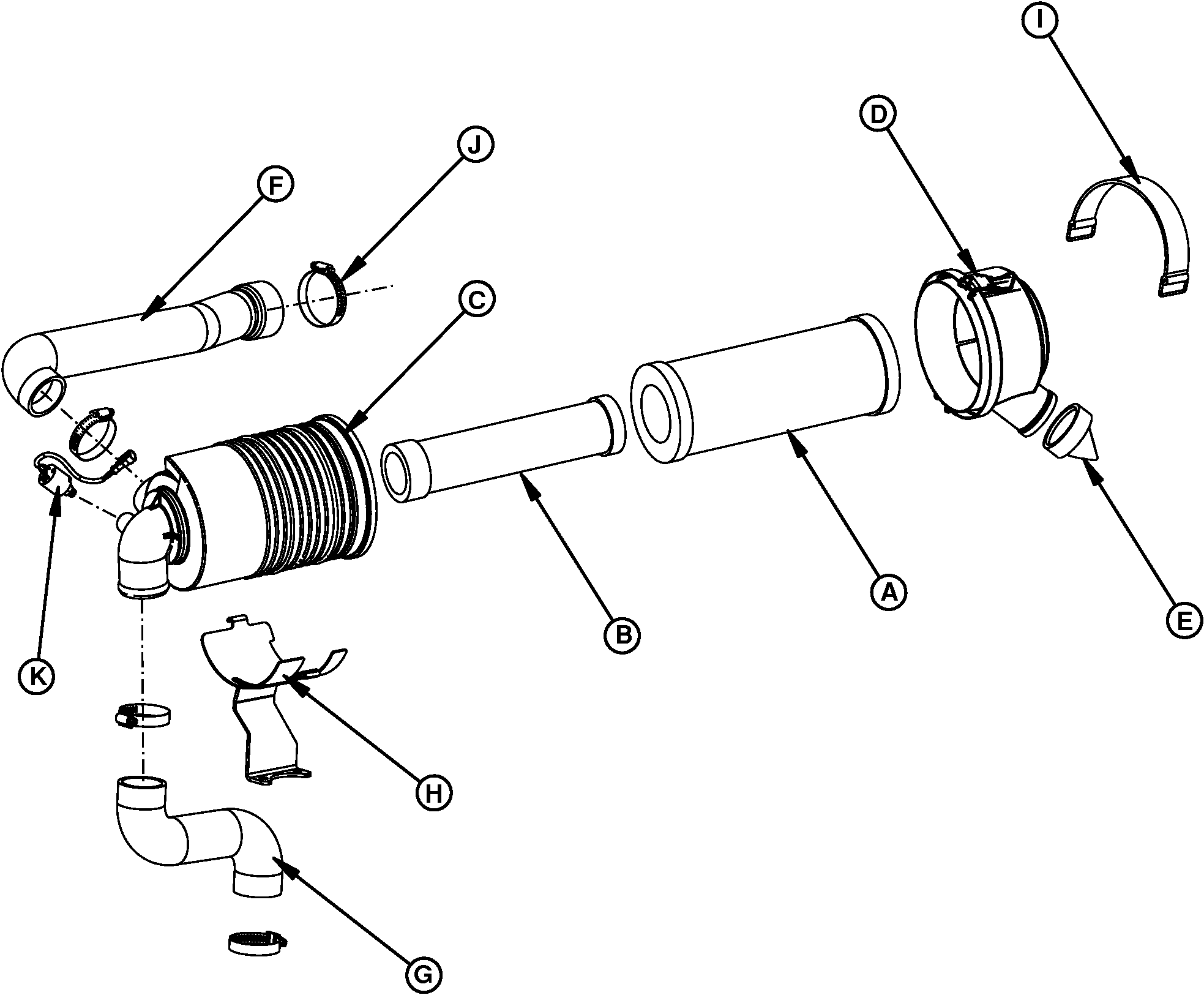

A - Primary Air Cleaner Element

B - Secondary Air Cleaner Element

C - Air Cleaner Assembly

D - Cover

E - Dust Unloader Valve

F - Suction Hose, Air Cleaner Inlet

G - Suction Hose, Air Cleaner Outlet

H - Bracket

I - Rubber Starp

J - Clamp (4 Used)

K - Air Restriction Sensor

Air enters the intake system through the open end of the air cleaner canister. A major portion of the dust is separated out by air turbulence action of the primary air cleaner element (A) and passed out into the radiator inlet air flow through the dust unloader valve (C). If the primary element becomes plugged, dust is filtered out by the secondary element (B).
