Engine Cooling System

PY23250-UN-05MAR15

PY23251-UN-09MAR15

PY23252-UN-05MAR15

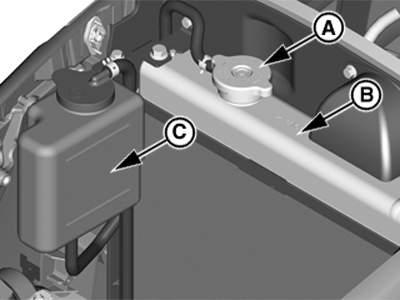

A - Radiator Cap

B - Radiator

C - Coolant recovery tank

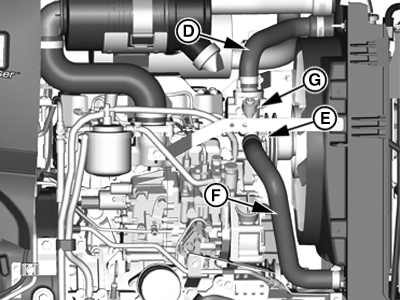

D - Upper Radiator Hose

E - Engine Coolant Pump

F - Lower Radiator Hose

G - Thermostat Valve

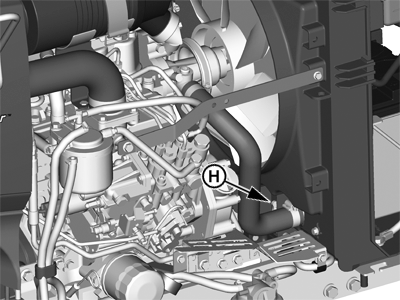

H - Radiator Drain Plug

Coolant is added in coolant recovery tank and not in radiator directly. For efficient operation, drain old coolant, flush entire cooling system at least once in a year.

IMPORTANT: Never pour cold water into the cooling system of a hot engine, as it might crack cylinder block or head. DO NOT operate engine without coolant for even a few minutes.

NOTE: Clean radiator in most dusty conditions. Failure of cleaning leads to improper flow of coolants through radiator which leads to a temperature increase of coolants.
