Connect Starter Wiring

IMPORTANT: Disconnect battery negative (ground) cable before servicing any part of electrical system. Make all other connections before connecting ground cable.

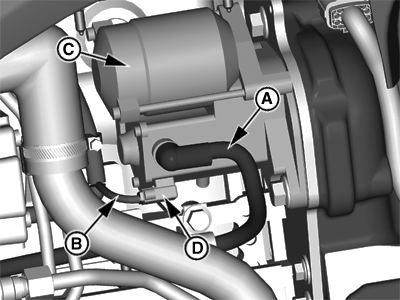

Connect battery positive cable ring terminal (A) to starter motor (B) and front wiring harness single pole connector to starter solenoid

PY23243-UN-06MAR15

A - Positive Battery Cable

B - Front Wiring Harness Solenoid Branch

C - Starter Motor

D - Solenoid Terminal
