Connect Alternator Wiring

IMPORTANT: Disconnect battery negative (ground) cable before servicing any part of electrical system. Make all other connections before connecting ground cable.

To prevent damage to electrical system, disconnect alternator before making any electrical weld repairs. If an attached implement needs weld repair, disconnect it from tractor before welding, to prevent damage to tractor electrical system.

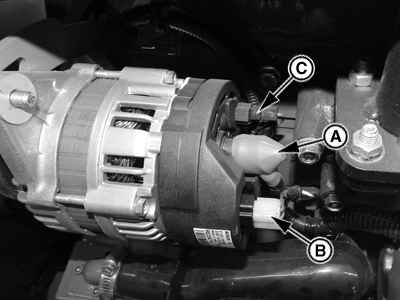

If alternator is disconnected for any reason, connect wires (A), (B) and (C) as shown at right.

PY23244-UN-30JAN15

A - Battery Terminal

B - Ignition or Charge Indicator

C - ‘W’ Point for Instrument cluster
