Replace Headlight Bulb

1.
   PY23276-UN-10FEB15


   PY23277-UN-10FEB15


   PY23278-UN-10FEB15

   A - Dust Boot

   B - Collar

   C - Bulb

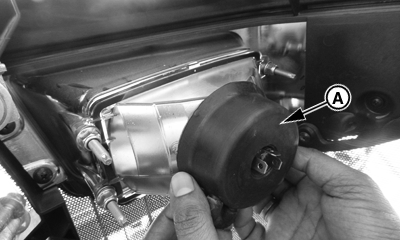

   Remove dust boot (A).

---




2. Remove headlight connector.

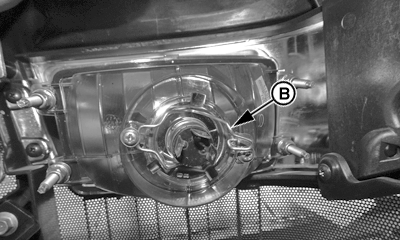

3. Press the collar (B) and make it away from the headlight.

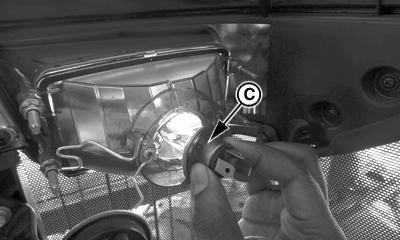

4. Remove bulb (C) and replace with new bulb.

   CAUTION: A halogen bulb is pressurized and may shatter. Protect bulb against abrasions and scratches.

   To guard against personal injury, wear protective eyeglasses and clothing when handling bulb. Turn power off when installing and before removing bulb. Dispose of bulb with care.

   Allow bulb to cool before removing.

   Read and follow all bulb manufacturers installation instructions.

5. Install collar, dust boot and headlight connectors in reverse order.
