Replace Tail / Turn and Warning Light Bulbs

1.
   PY23245-UN-30JAN15


   PY23246-UN-30JAN15

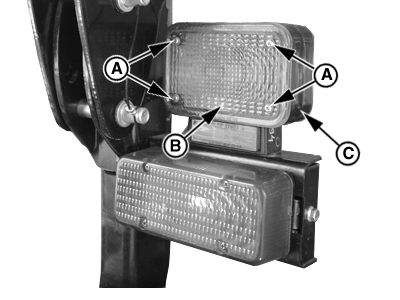

   A - Cap Screws (4 Used)

   B - Cover

   C - Tail and Turn Light

   D - Bulb

   Remove screws (A).

---




2. Remove cover (B).

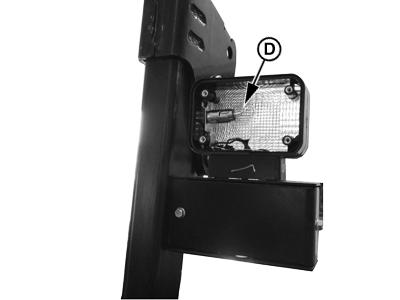

3. Push and twist to release bulb (D) from socket.

4. Replace with new bulb (D).

5. Reverse this procedure to reassemble tail and turn light assembly.

6.
   PY23247-UN-30JAN15


   PY23248-UN-30JAN15

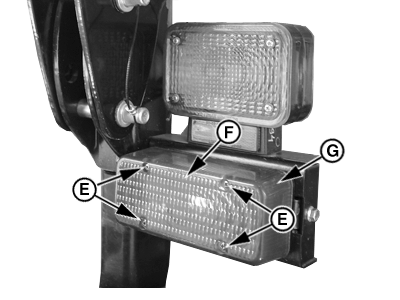

   E - Cap Screws (4 Used)

   F - Cover

   G - Warning Light

   H - Bulb

   Remove screws (E).

---




7. Remove lens (F).

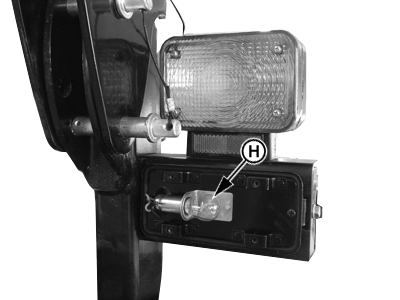

8. Push and twist to release bulb (G) from socket.

9. Reverse this procedure to reassemble warning light assembly.
