Lubricate Clutch and Brake Pedal

1.

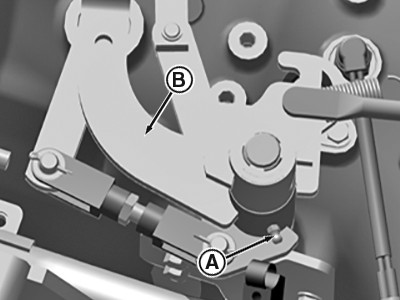

   PY31202-UN-11JUL16

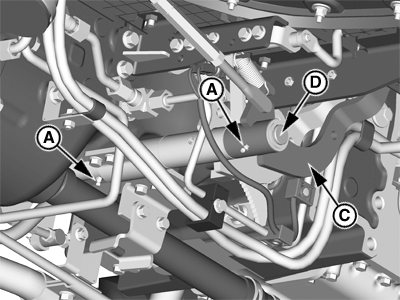

   PY23263-UN-04FEB15

   A - Greasing Point

   B - Clutch Pedal

   C - Brake Pedal

   D - Shaft, Brake Pedal Assembly

   Park the tractor on a level surface. Engage park brake.

---




2. Lubricate clutch pedal (B), brake pedal (C) with multi-purpose grease.

3. Apply several shots of multi-purpose grease to greasing point (A) as shown. (See Fuels, Lubricants and Coolant section.)
