Change Transmission-Hydraulic Oil Filter

1. IMPORTANT: Change transmission-hydraulic oil filter after the first 100 hours of operation and then at every 500 hours of operation thereafter.

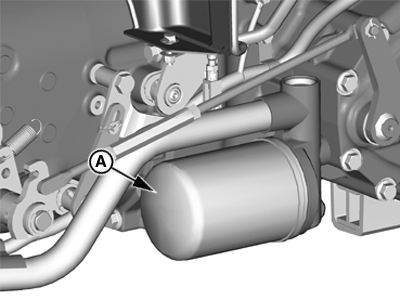

   PY22030-UN-06NOV14

   A - Transmission - Hydraulic Oil Filter

   Park the tractor on a level surface with the engine SHUT-OFF and the parking brake "ON".

---




2. Remove oil filter (A) with the help of oil filter wrench.

3. Apply a film of oil to new O-ring and install new filter. Hand tighten plus 1/2 turn with oil filter wrench.

4. Run engine several seconds and recheck transmission-hydraulic oil level.

5. Add transmission-hydraulic oil if required. (See Fuels, Lubricants and Coolant section.)

   NOTE: Add Low Viscosity HY-GARD® (JDM J20C) or equivalent.
