Check and Adjust Brake Pedal Free Play

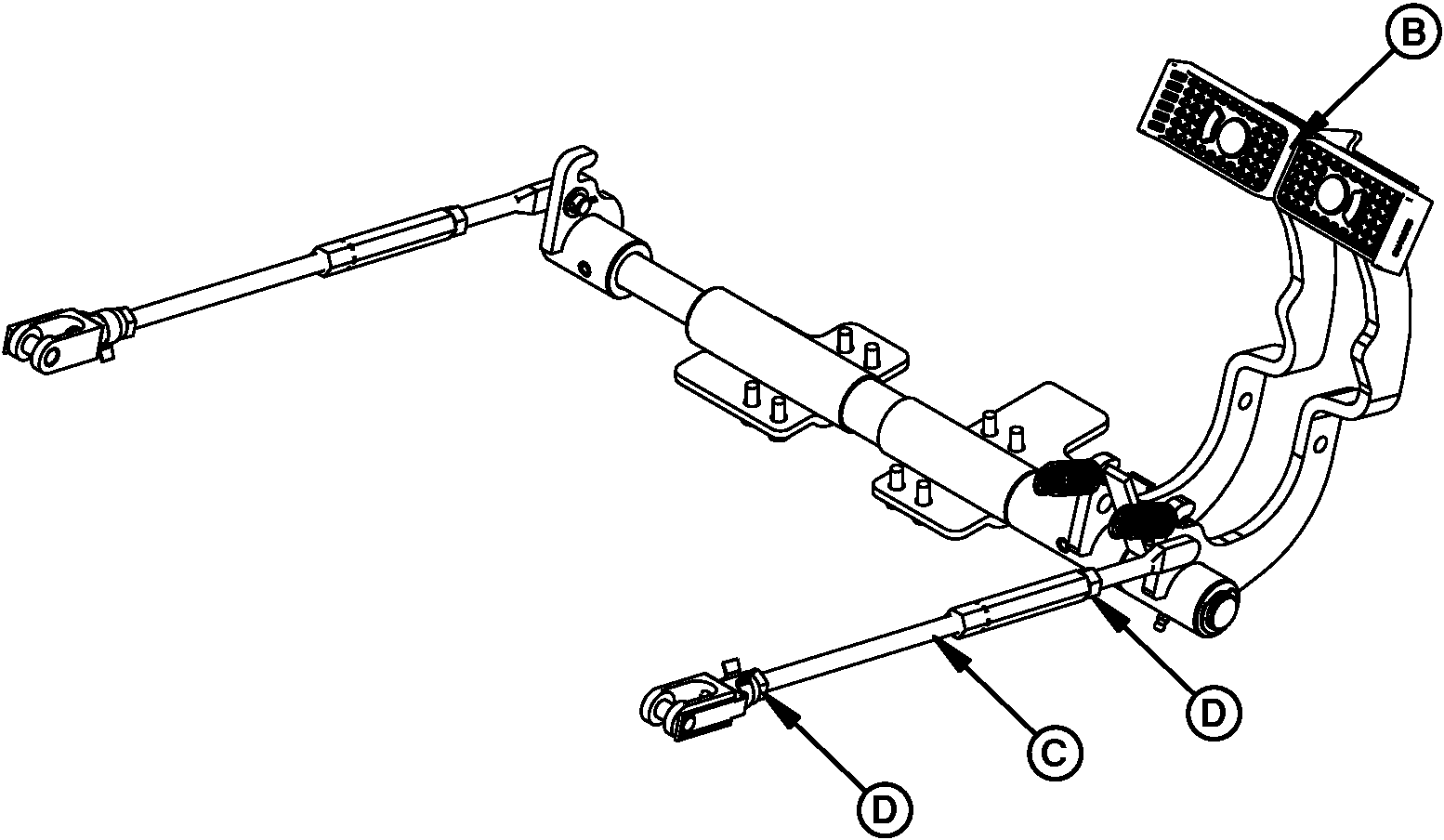

PY23274-UN-02MAR15

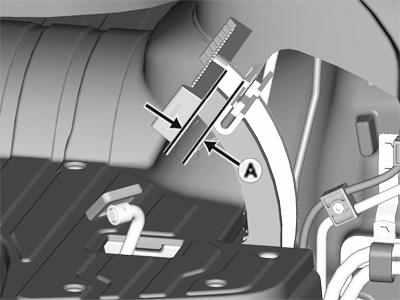

PY23273-UN-10FEB15

Brake Pedal Adjustment

A - Brake Pedal Free Play

B - Brake Pedal

C - Turnbuckle

D - Nut (2 Used)

1. Park on level surface. Chock wheels to prevent machine movement.

2. Unlock brake pedals.

3. Check free play (A) of each brake pedal at top of stroke.

4. Linkage must be to specification.

   Item	Measurement	Specification
   Brake Pedal	Free Play	60 mm

5. To adjust linkage, loosen nut (D)

6. Adjust the turnbuckle (C) until free play is to the specification.

7. Tighten nut (D).
