Clean Radiator Screen

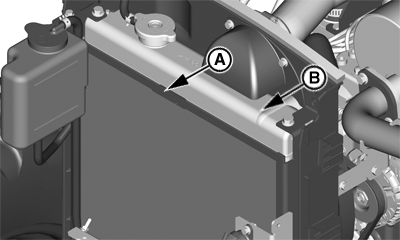

  1. PY23296
    PY23296-UN-04MAR15

    A - Radiator Screen

    B - Radiator

    Open hood.


  2. Remove radiator screen (A) located in front of the radiator (B).

  3. CAUTION: Avoid injury! Compressed air can cause debris to fly a long distance. Wear eye protection when using compressed air for cleaning purposes. Reduce compressed air pressure to 210 kPa (30 psi)

    Clean radiator screen (A) with a brush, compressed air or water from a hose as necessary.

RA84036,00004D1-19-20150306
