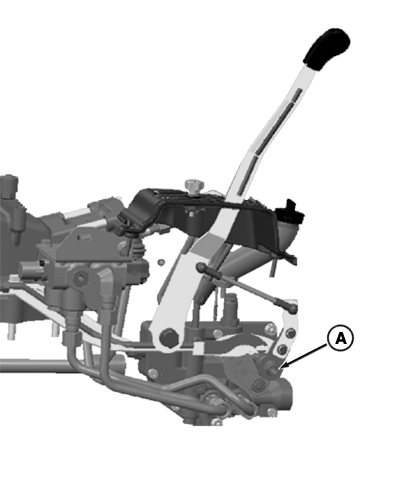

Adjust PC Lever Operating Efforts
PY26000-UN-03DEC15
A - Nut
In order to increase the PC Lever efforts rotate the nut (A) clockwise and to decrease the PC Lever efforts rotate the nut anti-clockwise.
RA84036,00006DA-19-20151102
