Use Tail Lights

PY22434
PY22434-UN-03MAR15

PY21960
PY21960-UN-01JAN15

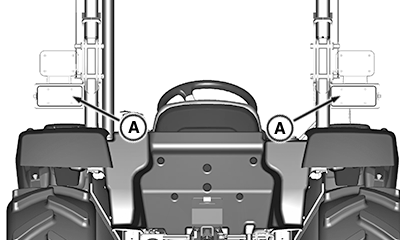

A - Tail Lights

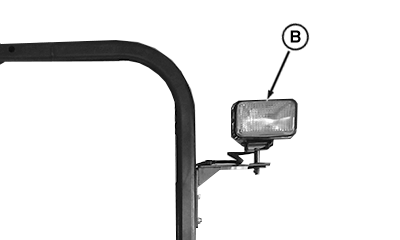

B - Flood Light

Red tail lights (A) are switched on by either bright headlight or dim headlight light switch position.

Be sure that tail light lenses are clean before driving on a road, so other drivers can see it easily.

CAUTION: Prevent collisions between other road users, slow moving tractors with attachments or towed equipment, and self-propelled machines on public roads. Frequently check for traffic from the rear, especially in turns, and use hand signals or turn signal lights.

Use headlights, flashing warning lights, and turn signals day and night. Follow local regulations for equipment lighting and marking. Keep lighting and marking visible and in good working order. Replace or repair lighting and marking that has been damaged or lost. An implement safety lighting kit is available from your John Deere dealer.

RM87422,000008D-19-20150305
