Select Seat Position

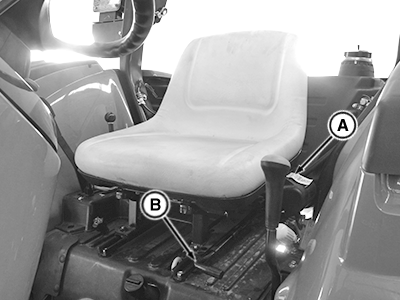

PY23079-UN-08FEB15

A - Seat Belt

B - Seat Adjustment Lever

Seat can be moved forward or backward depending on operator's requirement. To move seat on either side, just lift lever up (B) as shown and push the seat.

To properly retain operator, seat belt (A) must fit tightly across abdomen. Seat belt extends as necessary to fit comfortably

CAUTION: Use a seat belt when you operate with a roll-over protective structure (ROPS) to minimize chance of injury from an accident such as an overturn. DO NOT use seat belt when ROPS is folded down.
