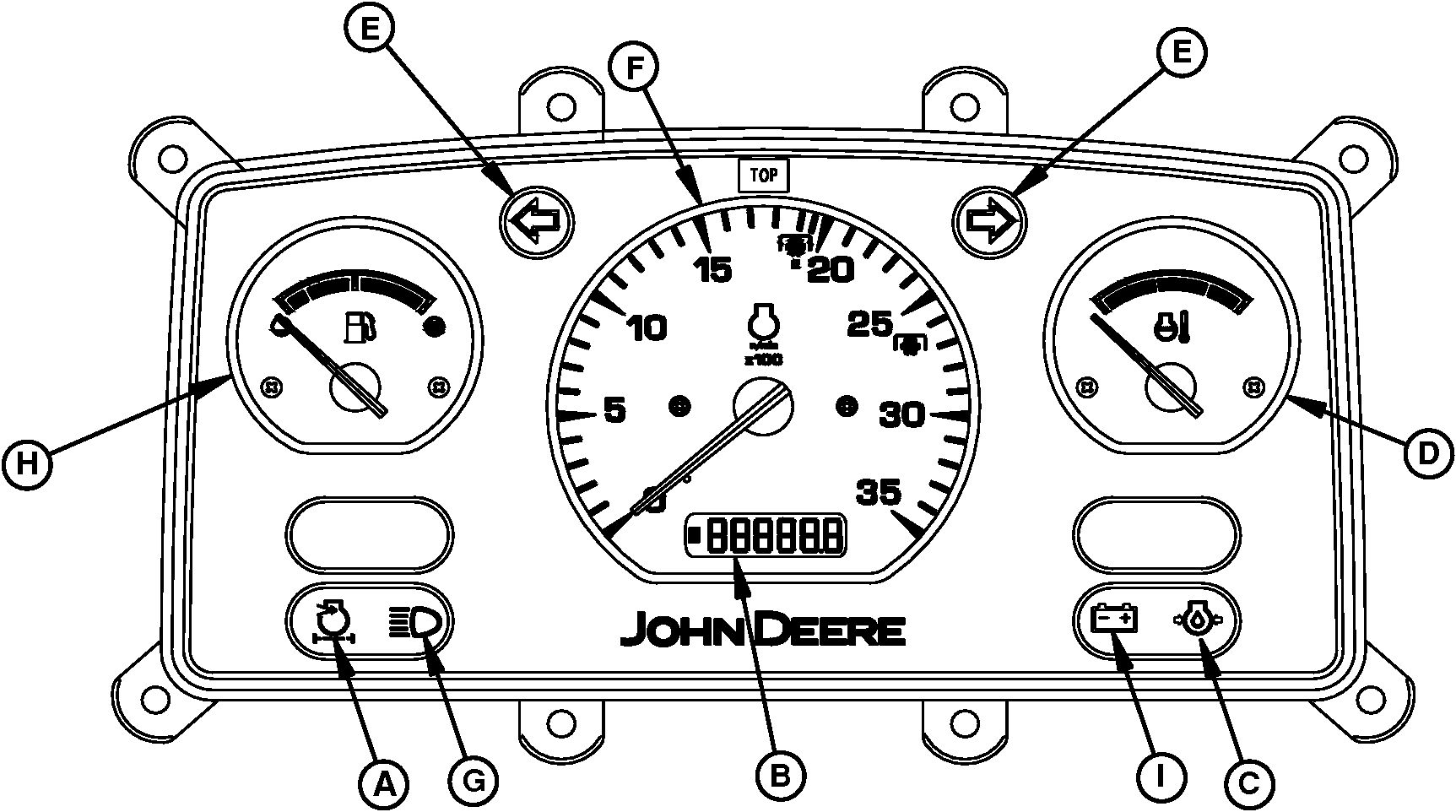

Instrument Panel

PY21966-UN-04NOV14

A - Air Restriction Sensor

B - Hour Meter

C - Engine Oil Pressure Indicator

D - Coolant Temperature Gauge

E - Turn Signal Direction Indicators

F - Tachometer

G - High Beam Indicator

H - Fuel Gauge

I - Battery Charge Indicator

A	Air Restriction Indicator	Illuminates when air cleaner element is clogged (clean or replace element). If necessary, have John Deere dealer diagnose vehicle.
B	Hour Meter	Displays Hour Meter.
C	Engine Oil Pressure Indicator	Oil pressure indicator will light if engine oil pressure is low. Indicator should light when key is turned to RUN position and go out when engine starts.
D	Coolant Temperature Gauge	Indicates engine coolant temperature. Red area indicates overheat (coolant level too low, dirty radiator, or clogged screen). SHUT OFF engine IMMEDIATELY to prevent damage. If necessary, have John Deere dealer diagnose vehicle.
E	Turn Signal Direction Indicators	Illuminates when turn signal switch is switched to right-hand side. It also illuminates when hazard switch activated. Illuminates when turn signal switch is switched to left-hand side. It also illuminates when hazard switch activated.
F	Tachometer	Indicates engine speed, revolutions per minute (RPM).
G	High Beam Indicator	Illuminates when the headlights are switched on high beam mode.
H	Fuel Gauge	Indicates amount of fuel remaining in fuel tank. When needle comes to a red zone operator need to fill the fuel tank.
I	Battery Charge Indicator	Initially indicator illuminates when key switch brought to run position and it goes off when key switch brought to engine start position.
