Operate Park Brake Lever

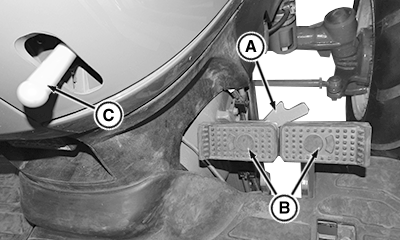

PY21965
PY21965-UN-01JAN15

A - Brake Pedal Lock

B - Brake Pedals

C - Park Brake Lever


  1. Engage brake pedal lock (A).
  2. Press brake pedals (B).
  3. Pull park brake lever (C) and move it upwards to the full length.
  4. Finally stop pulling the park brake lever (C) and hence lock the park brake.
  5. Pull park brake lever (C) & move it down downwards to the full length to disengage the park brake.

RM87422,0000097-19-20150101
