Operate PTO Lever

1.

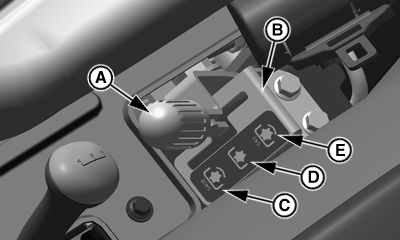

   PY22440-UN-09JUN15

   A - PTO Lever

   B - Bracket

   C - Engage PTO at 540E rpm

   D - PTO at Neutral Position

   E - Engage PTO at 540 rpm

   To engage standard PTO 540 rpm, slide PTO Lever (A) towards right and then rearward (E) and set the engine rpm to 2500 ERPM.

---




2. To engage 540E PTO (Economy mode), slide PTO lever (A) towards left and then forward (C) and set the engine rpm to 1925 ERPM.

3. To disengage PTO, move PTO lever (A) to NEUTRAL position (D) as shown.
