Stop the Engine

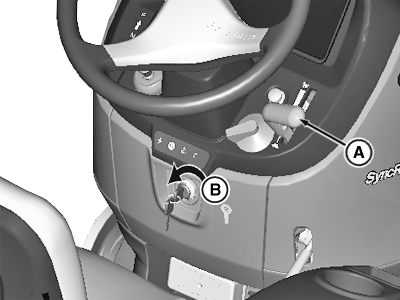

  1. PY21981
    PY21981-UN-05JAN15

    A - Hand Throttle

    B - Key Switch-off Position

    Pull hand throttle (A) down to slow idle position. Allow engine to idle for 1—2 minutes.



  2. Put gear shift lever in NEUTRAL (N) and set brakes.

  3. IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

    Turn key switch to the OFF position (B).

CAUTION: Remove key from key switch to prevent operation by untrained personnel.

RM87422,00000A8-19-20150105
