Shifting Transmission

PY23136-UN-05MAR15

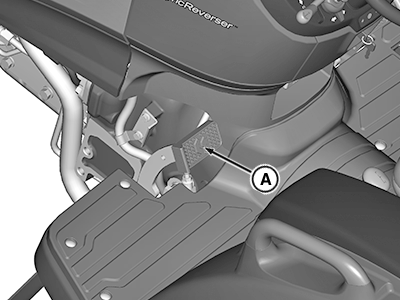

A - Clutch Pedal

CAUTION: To prevent transmission damage, do not use forward-reverse lever on-the-go. To prevent unnecessary wear, never “ride” the clutch by resting a foot on the pedal.

Depress clutch pedal (A) and stop tractor before shifting either range shift lever or gear shift lever or forward-reverse lever. Release clutch pedal gradually to take up load smoothly.
