Observe Drawbar Load Limitations

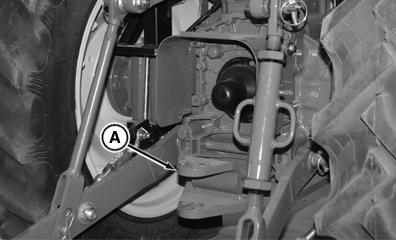

PY21992-UN-16DEC16

A - Drawbar

IMPORTANT: Certain heavy equipment, such as a loaded single-axle trailer, can place excessive strain on drawbar (A). Strain is greatly increased by speed and rough ground.

Static vertical load on drawbar (A) should not exceed 330 kg (727 lb).

Drive slowly with heavy loads.

Item	Measurement	Specification
Drawbar Static Vertical Load	Capacity	330 kg (727 lb) Maximum
