Adjusting Drawbar Length

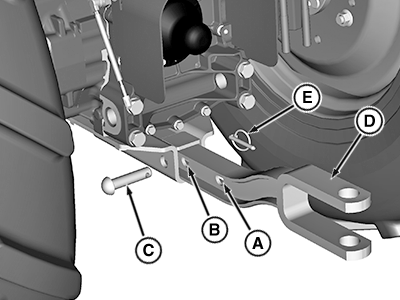

PY23072-UN-27JAN15

A - Hole, RETRACTED (short) Drawbar Position

B - Hole, EXTENDED Drawbar Position

C - Retaining Pin

D - Drawbar

E - Quick Lock Pin

Hole (A): SHORT position

Hole (B): EXTENDED position

1. Remove quick lock pin (E) and retaining pin (C) from drawbar (D).
2. Slide drawbar (D) forward or rearward to desired position.
3. Align holes (A or B) and install retaining pin.
