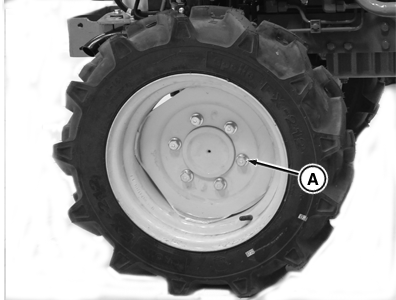

Tighten Bolts— Front Axle

PY22403-UN-16DEC16

A - Disk-to-Flange Bolts

Tighten bolts in the following locations to specifications:

Item	Measurement	Specification
Front Axle—Disk-to-Flange Bolts	Torque	220 N·m (162 lb-ft)
