Tighten Bolts—Rear Axle

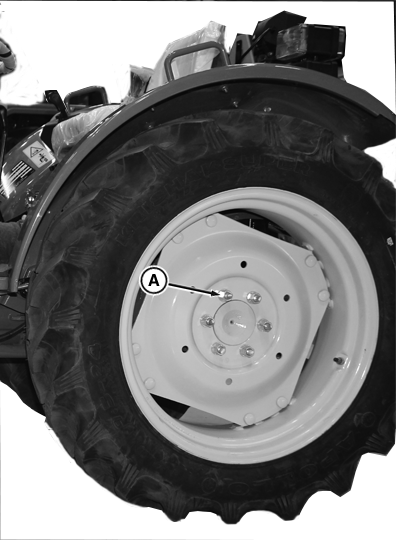

PY22404-UN-16DEC16

A - Disk-to-Flange Bolts

Tighten bolts in the following locations to specifications:

Item	Measurement	Specification
Rear Axle Disk-to-Flange (Steel Disk)	Torque	320 N˙m (236 lb-ft)
