Check Implement-to-Tire Clearance

IMPORTANT:

M47177
M47177-UN-31JAN92

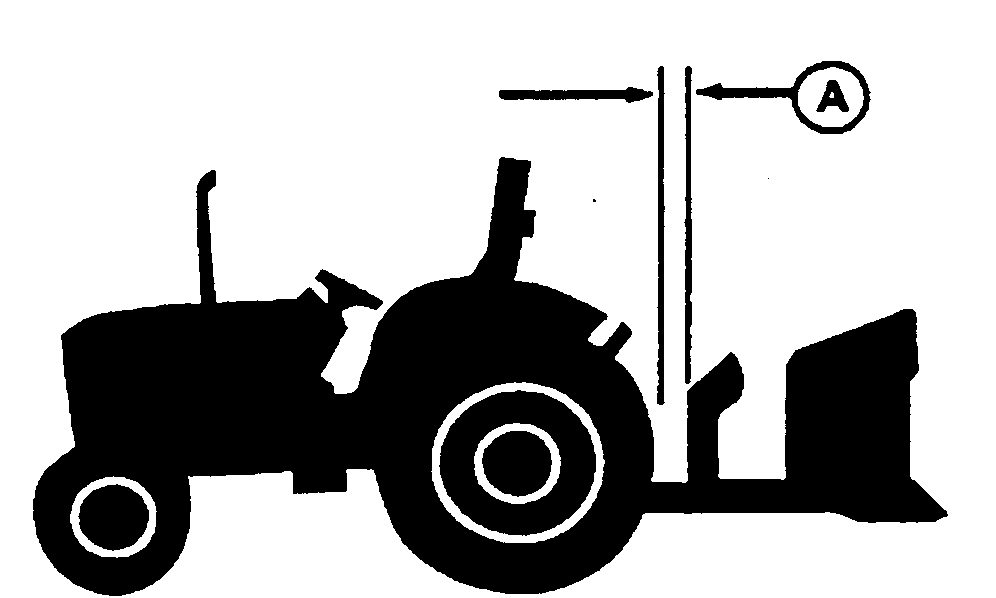

A - Clearance

Check for adequate clearance (A) between outside diameter of the tire and implement with hitch in raised position.

When large diameter rear tires are installed on a tractor with a 3-Point Hitch, a quick coupler or similar device may be required to provide adequate implement-to-tire clearance.
