Check Engine Idle Speeds

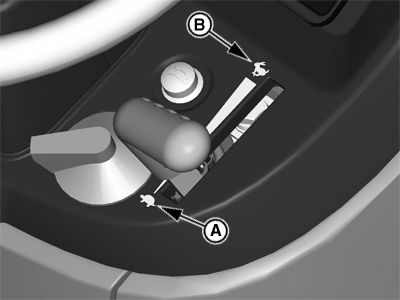

PY22037-UN-11NOV14

A - Low (Turtle) idle speed

B - High (Rabbit) idle speed

Slow (Turtle) idle speed is attained with the hand throttle all the way down.

Fast (Rabbit) idle speed is attained with the hand throttle all the way up.

Item	Measurement	Specification
Engine—Low Idle	Speed	900 ± 25 rpm
Engine—High Idle (with No Load)	Speed	2995 ± 25 rpm

NOTE: Hand throttle position will directly relate with label on right-hand side of instrument panel.

If idle speeds are not correct, See your authorized John Deere dealer or distributor.
