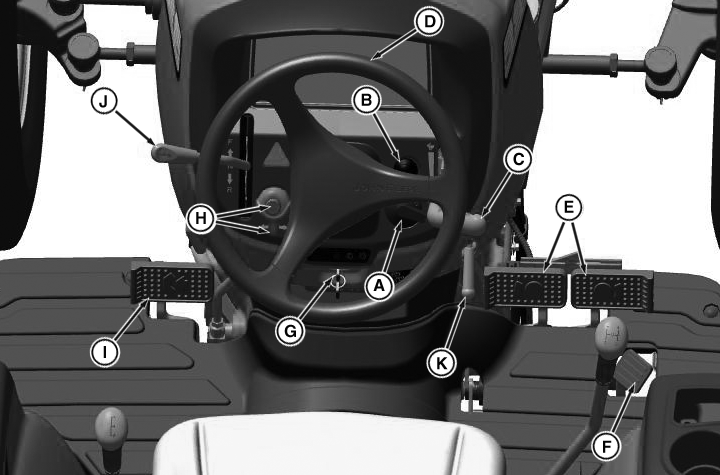

Tractor Controls

APY12970-UN-10MAY19

A - Light Switch

B - Horn Switch

C - Hand Throttle

D - Steering Wheel

E - Brake Pedals

F - Foot Throttle

G - Key Switch

H - Turn Signal + Hazard Switch

I - Clutch Pedal

J - Forward-Reverser Lever

K - Handbrake Lever

APY12967-UN-10MAY19

PY21954-UN-02NOV14

PY24513-UN-23JUL15

PY21983-UN-05NOV14

PY22430-UN-03MAR15

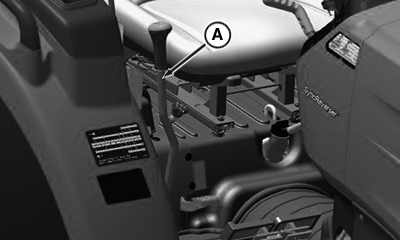

A - Gear Shift Lever

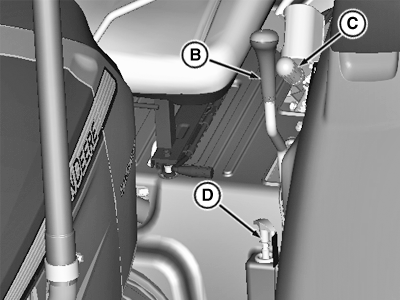

B - Range Shift Lever

C - PTO Lever

D - MFWD Lever

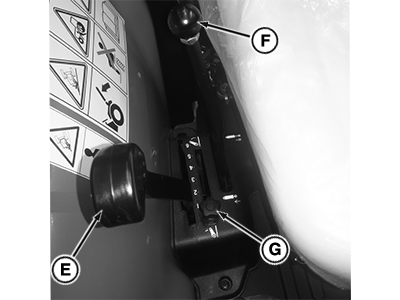

E - Position Control Lever

F - Selective Control Valve (SCV) Lever

G - Position Control Lever Stop

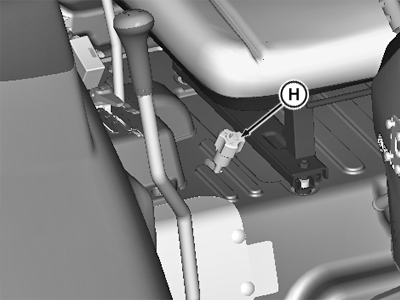

H - Rockshaft Rate-of-Drop Knob

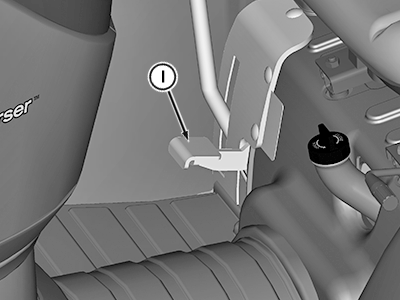

I - Differential Lock Pedal
