Aim Headlights

1.
   APY12975-UN-10MAY19

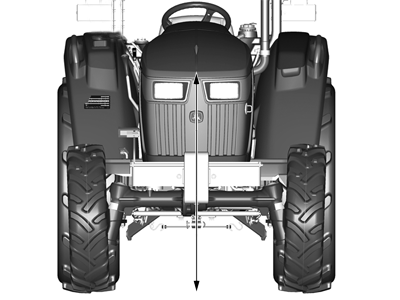

   Light-Duty Front Axle


   APY12976-UN-10MAY19

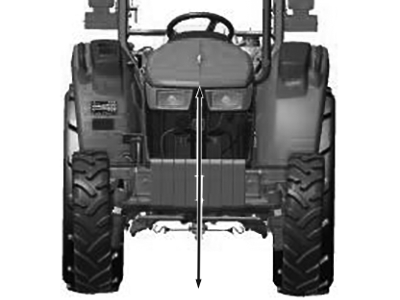

   Heavy-duty Front Axle


   LV3020-UN-10JUN99

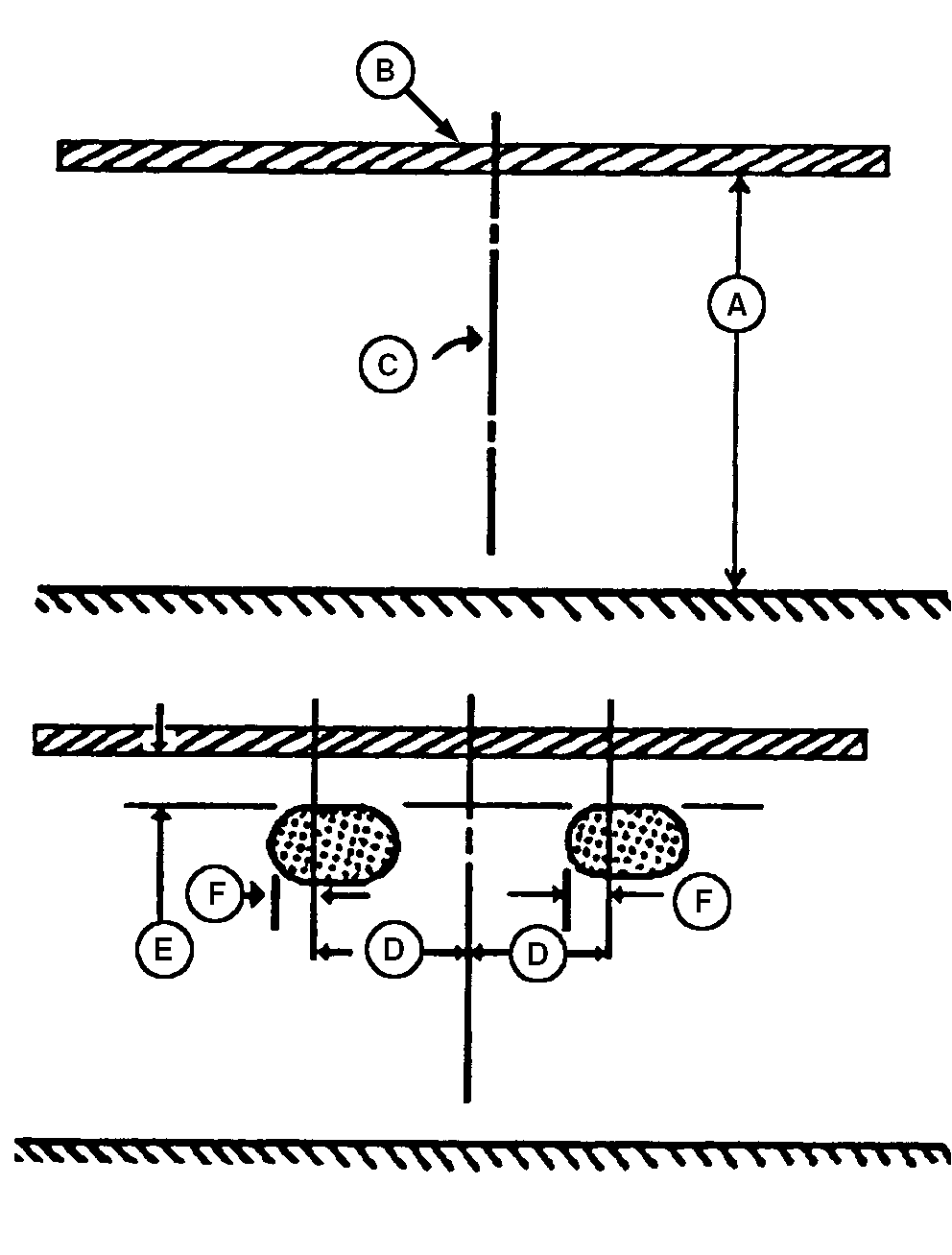

   A - Hood-to-Ground Distance

   B - Masking Tape

   C - Tractor Centerline

   D - Center of Headlight

   E - Top of Zone

   F - Left Edge of Zone

   Park tractor on level ground, with lights 8 m (25 ft) from a wall.

---




2. Measure from the top of hood to the ground (A). Place a strip of masking tape (B) on the wall at the same height.

3. Place a piece of tape, folded in the middle to make a point, on the top front center of the hood.

4. Using the hood tape as a guide, sight across steering wheel and hood to locate the tractor centerline. Mark tractor centerline (C) on wall.

5. From the tractor centerline (C), mark a point 130 mm (5 in) out in each direction (D). This mark locates a point directly in the front of center of each headlight.

6. Turn light switch to dim position.

7. Locate small zone of bright light projected by each lamp. Cover other lamps if necessary. Top of zone (E) must be 130 mm (5 in) below the tape. Left edge of zone (F) must be 130 mm (5 in) left of lamp location marked (D).

8. To adjust headlights, see Adjusting Headlights in this section.
