Drain Cooling System

PY22064-UN-04MAR15

APY12979-UN-10MAY19

PY22066-UN-04MAR15

A - Radiator Cap

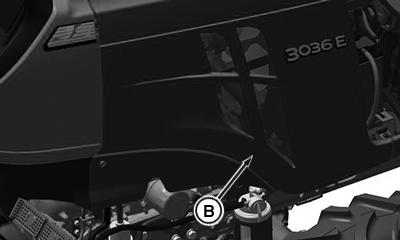

B - Hood Side Panel (right-hand)

C - Drain Valve, Radiator

CAUTION: Avoid injury! DO NOT remove the radiator cap unless the engine is cool. Slowly loosen cap to the first stop. Release all pressure before removing cap. When the engine is hot the explosive release of fluids from the pressurized cooling system could cause serious burns.

Antifreeze is hazardous to the environment. Dispose of the antifreeze in a proper container.

1. Park the tractor on a level surface with the engine shutoff and the park brake "ON" and implement lowered to the ground.

2. Raise and latch the hood in open position.

3. Slowly remove the radiator cap (A).

4. Remove hood side panel (Right) (B) of tractor.

5. Open radiator drain valve (C). Drain coolant into a pan.

   After all coolant has drained, close radiator drain valve (C).

6. Flush cooling system. See Flush Cooling System in this section.
