Remove Tractor from Storage

  1. Check tire inflation pressure. (See Wheels, Tires, and Treads section.)

    Lower tires to ground.

  2. Unseal all openings sealed during storage.

  3. Install battery.

  4. Remove ties or block which secured clutch pedal down.

  5. Check levels of engine oil, transmission-hydraulic oil, and engine coolant, add if necessary.

  6. Drain a small amount of fuel from the fuel tank to purge any moisture condensation that has collected.

  7. Fill fuel tank.

  8. Perform all appropriate periodic maintenance schedule services as instructed in Service and Maintenance section.

  9. Check all instruments and indicators by turning key switch to ON position.

  10. IMPORTANT: DO NOT operate starter more than 20 seconds at a time, and wait at least two minutes for starter to cool before trying again.

    APY12981
    APY12981-UN-10MAY19

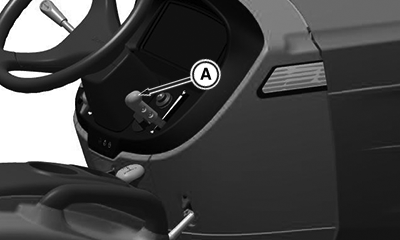

    A - Hand Throttle

    Pull hand throttle (A) all the way down, depress clutch pedal, and start engine until oil pressure rises.


  11. Connect wiring lead to fuel injection pump shutoff solenoid.

  12. Depress clutch pedal and start engine. Operate engine at low idle for several minutes. Warm up carefully and check all systems before placing tractor under load.

RP32883,00002E9-19-20190512
