Replace Relays and Fuses

IMPORTANT: Avoid damage! The electrical system would be damaged if incorrect replacement fuses are used. Replace the bad fuse with a fuse of the same Ampere rating.


Locating Fuses and Relays

Fuses (C) protect all the electrical circuits. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Si. No.

Fuse Rating

1

5 A

2

10 A

3

15 A

4

25 A

  1. PY23077
    PY23077-UN-05FEB15

    PY23078
    PY23078-UN-05FEB15

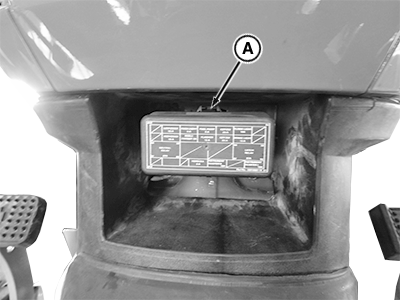

    A - Load Center Access Panel

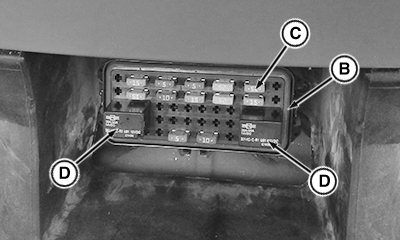

    B - Load Center

    C - Fuse

    D - Relay

    Park machine safely. (See Park Machine Safely in Safety Section.)


  2. Remove Load Center Access Panel (A).

  3. Remove load center cover.

  4. Identify fuse or relay in Load Center (B).

  5. Pull defective relay (D) or fuse (C) from Load Center.

  6. Push new relay or fuse into Load Center.

  7. Install load center cover.

  8. Install Load Center Access Panel.

RP32883,00002EB-19-20190513
