Canopy Mounted Mirror

1. NOTE: Mirror mounting brackets (C) is provided on the frame (D). Provision for mounting mirror assembly is provided on both sides of the canopy based on the countries traffic conditions and regulations.


   APY18697-UN-13MAY19

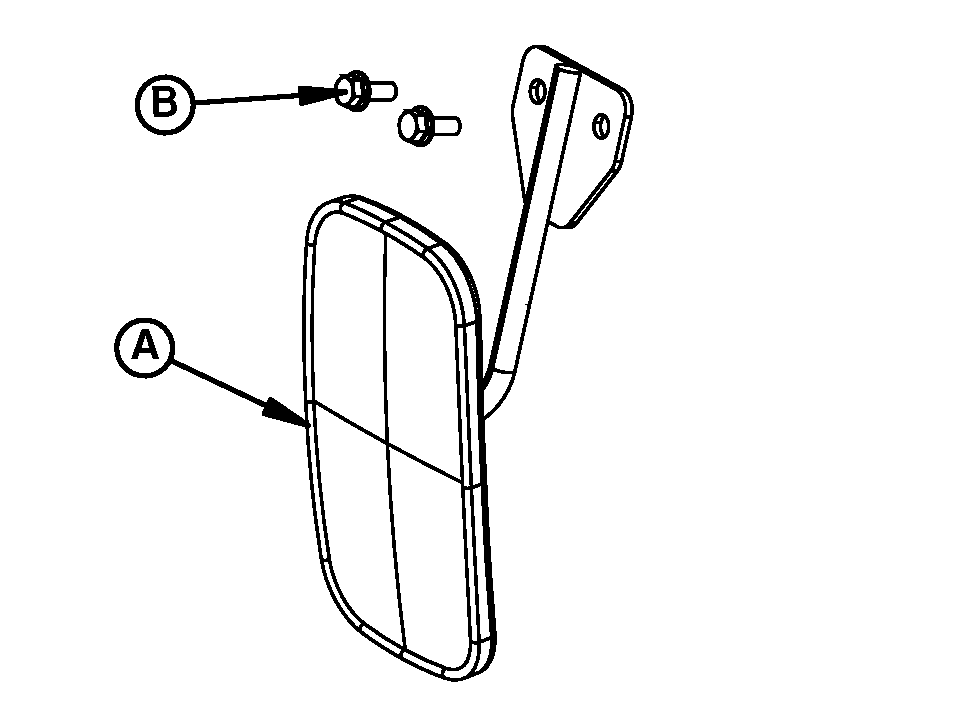

   Mirror Assembly


   APY12984-UN-22MAY19

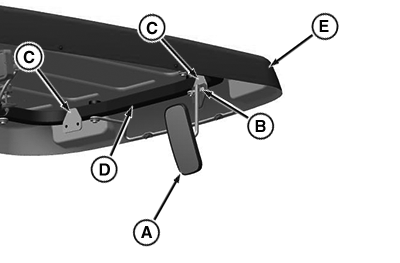

   Canopy Mounted Mirror

   A - Rear View Mirror Assembly

   B - Cap Screw (2 used)

   C - Bracket (2 used)

   D - Frame

   E - Canopy

---




2. Place the mirror assembly (A) on the bracket (C) of the canopy frame.

3. Install the cap screws (B) and tighten to specifications. See JDS- D47 for torque values.
