Tractor Lubrication Points

PY31204-UN-08JUL16

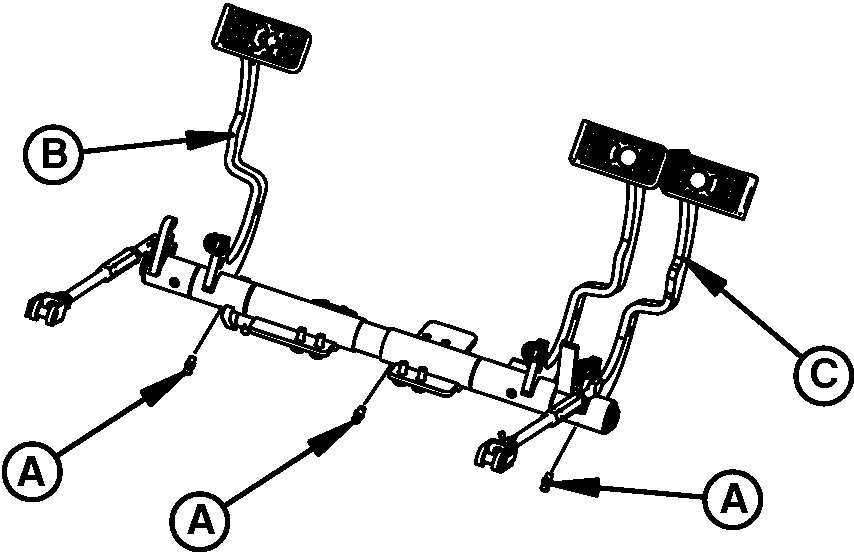

Clutch and Brake Pedal

PY23304-UN-02MAR15

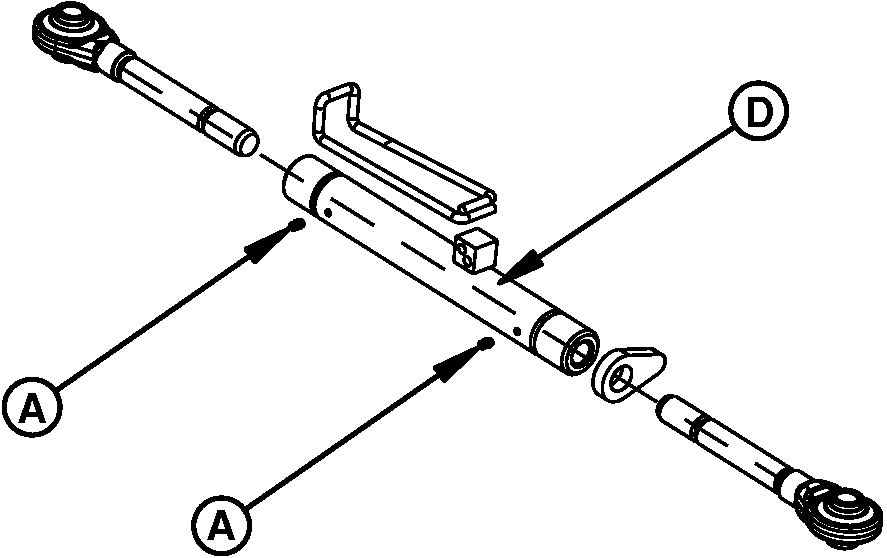

Center Link

PY23307-UN-04MAR15

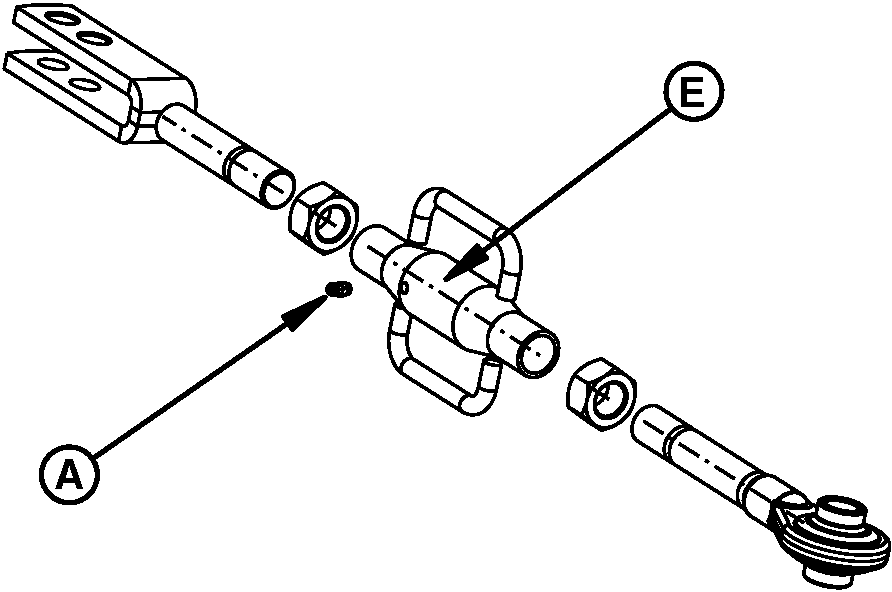

Adjustable Lift Link

PY23309-UN-09JUL15

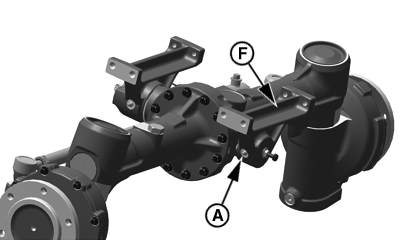

Light-Duty Front Trunnion, MFWD Axle

PY23310-UN-09JUL15

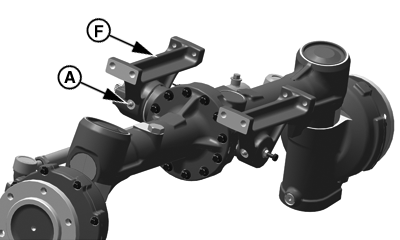

Light-Duty Rear Trunnion, MFWD Axle

PY35731-UN-28DEC16

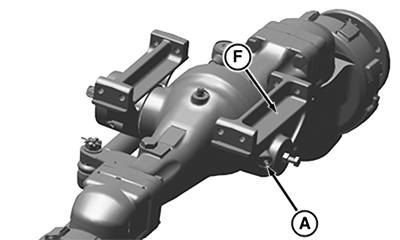

Heavy-Duty Front Trunnion, MFWD Axle

PY35732-UN-28DEC16

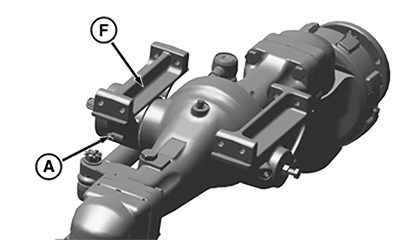

Heavy-Duty Rear Trunnion, MFWD Axle

A - Greasing Point

B - Clutch Pedal

C - Brake Pedal

D - Center Link

E - Adjustable Lift Link

F - Front & Rear Trunnion, MFWD Axle
