Lubricate Front Axle Grease Zerk Locations

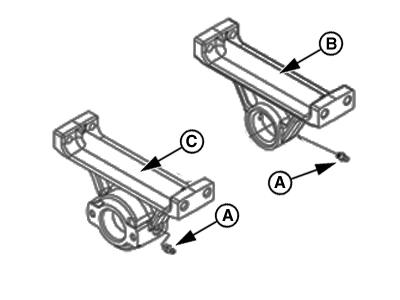

PY23260-UN-09JUL15

.

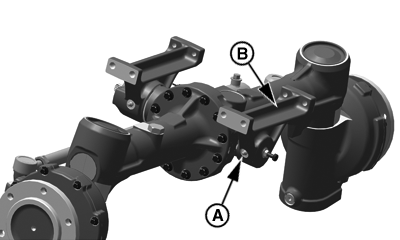

PY22058-UN-09JUL15

Light-Duty Front Trunnion, MFWD Axle

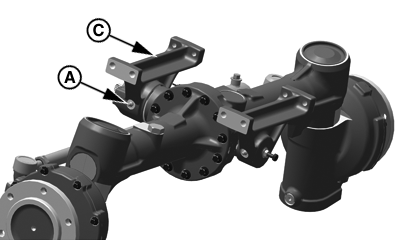

PY22059-UN-09JUL15

Light-Duty Rear Trunnion, MFWD Axle

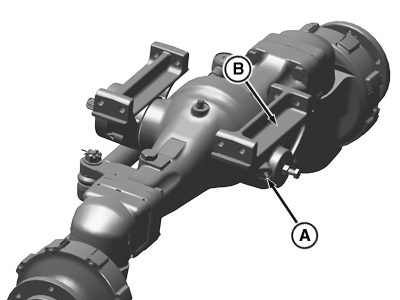

PY35728-UN-27DEC16

Heavy-Duty Front Trunnion, MFWD Axle

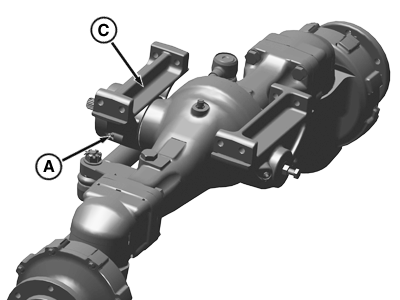

PY35729-UN-27DEC16

Heavy-Duty Front Trunnion, MFWD Axle

A - Greasing Point

B - Front Trunnion

C - Rear Trunnion

1. Park the tractor on a level surface. Engage park brake.

2. Apply several shots of multipurpose grease to the grease zerk (A) on front and rear trunnion (B and C) respectively.
