Adjust Toe-In—MFWD Axle

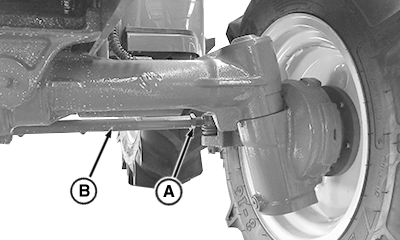

PY22406-UN-04MAR15

Light-Duty Powered Axle

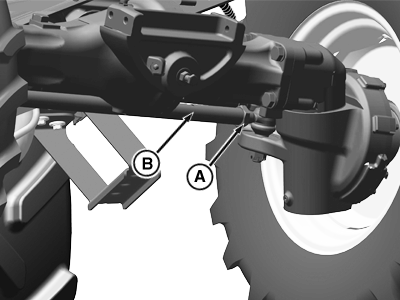

PY35734-UN-27DEC16

Heavy-Duty Powered Axle

A - Tie Rod Jam Nut

B - Tie Rod Tube

1. Loosen tie rod jam nut (A) on both ball joints.

2. Rotate tie rod tube (B) clockwise or counterclockwise to adjust the amount of toe-in. Adjust tie rod until toe-in set to 0—3 mm.

   - Rotating threaded rod in 1/2 turn increments equals 1.5 mm (1/16 in.)

3. Tighten the bolt to specification. Do not overtighten, it damages the tube.

   Item	Measurement	Specification
   Tie Rod Jam Nut (Light-Duty Front Axle)	Torque	115 - 130 N·m (85 - 96 lb·ft)

   Item	Measurement	Specification
   Tie Rod Jam Nut (Heavy-Duty Front Axle)	Torque	157 - 168 N·m (115.5 - 124 lb·ft)

4. Check toe-in setting. Repeat procedure if further adjustment is required.

Toe-In Value Chart
Make	Toe-In Value
Front Axle	0-3 mm
