Fill Fuel Tank
CAUTION:

TS202-UN-23AUG88

APY10269-UN-27JUL18
.

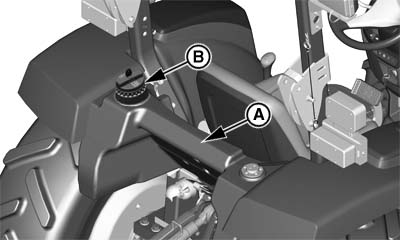

A - Fuel Tank
B - Fuel Tank Filler Cap
Handle fuel with care: It is highly flammable. DO NOT refuel
the machine while smoking or when near open flame or sparks.Always stop engine before refueling machine. Fill fuel tank
outdoors.
Prevent fires by keeping machine clean of accumulated trash,
grease, and debris. Always clean up spilled fuel.
Fuel tank (A) can be filled through either fill cap (B). Fill
fuel tank (A) at end of each days operation. This prevents condensation
in the tank as moist air cools.
| Item | Measurement | Specification |
|
Fuel Tank | Capacity | 38.5 L |
|
|
VP27597,0000B96-19-20180727
|
|
