Drain Fuel Tank

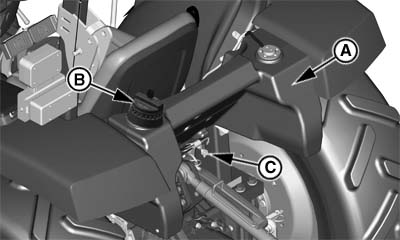

APY10267-UN-27JUL18

.

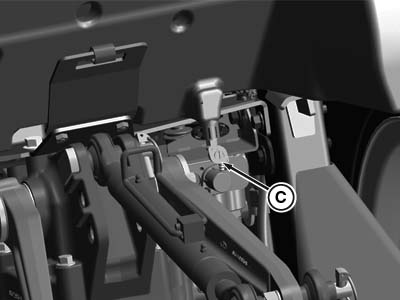

APY10303-UN-07AUG18

.

A - Fuel Tank

B - Fuel Cap

C - Drain Plug

CAUTION: Diesel fuel is flammable and explosive under certain conditions.

NOTE: NEVER use a shop rag to catch the fuel. Vapors from the rag are flammable and explosive.

1. Position an approved container under the diesel fuel tank (A) to collect the contaminants.

2. Remove the fuel cap (B).

3. Remove the drain plug (C) to drain the contaminants (water, dirt, etc.) from the bottom of the fuel tank (A).

4. Drain the tank until clean diesel fuel with no water or dirt flows out. Reinstall and tighten the drain plug (C) firmly.

   NOTE: Wipe up any spills immediately.

5. Reinstall the fuel cap (B).

6. Check for any fuel leakage.

IMPORTANT: Wear eye protection. The fuel system is under pressure and fuel could spray out when you remove any fuel system component.
