Fuel System Components

APY10270-UN-27JUL18

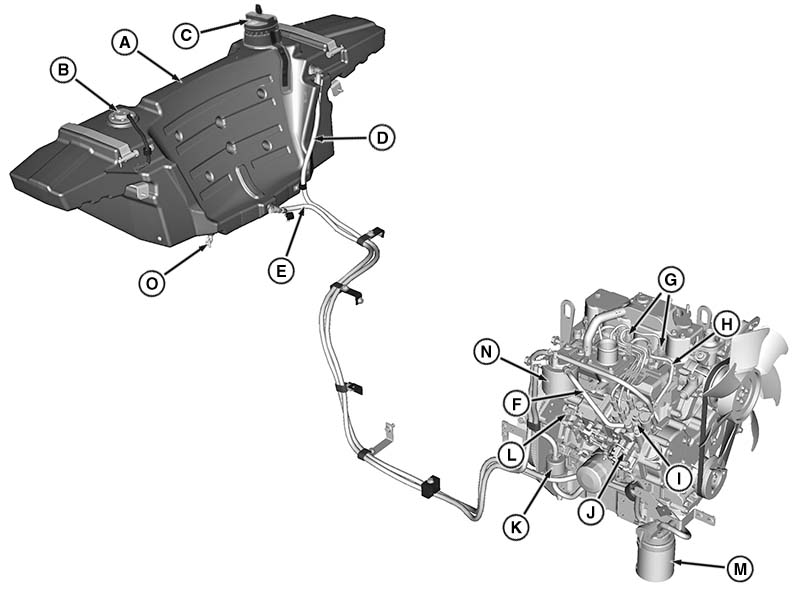

Fuel Supply

A - Fuel Tank

B - Fuel Level Sensor

C - Fuel Filler Cap

D - Overflow Drain Hose

E - Fuel Bleed-off Return Hose

F - Fuel Fillter-to-Injector Pump Hose

G - Injector Nozzles

H - Cold Start Advance Hoses to the Water Pump

I - Injector Pump

J - Trochoid Fuel Pump

K - Fuel Transfer Pump

L - Fuel Shutoff Solenoid

M - Water Separator

N - Fuel Filter

O - Fuel Tank Drain Valve
