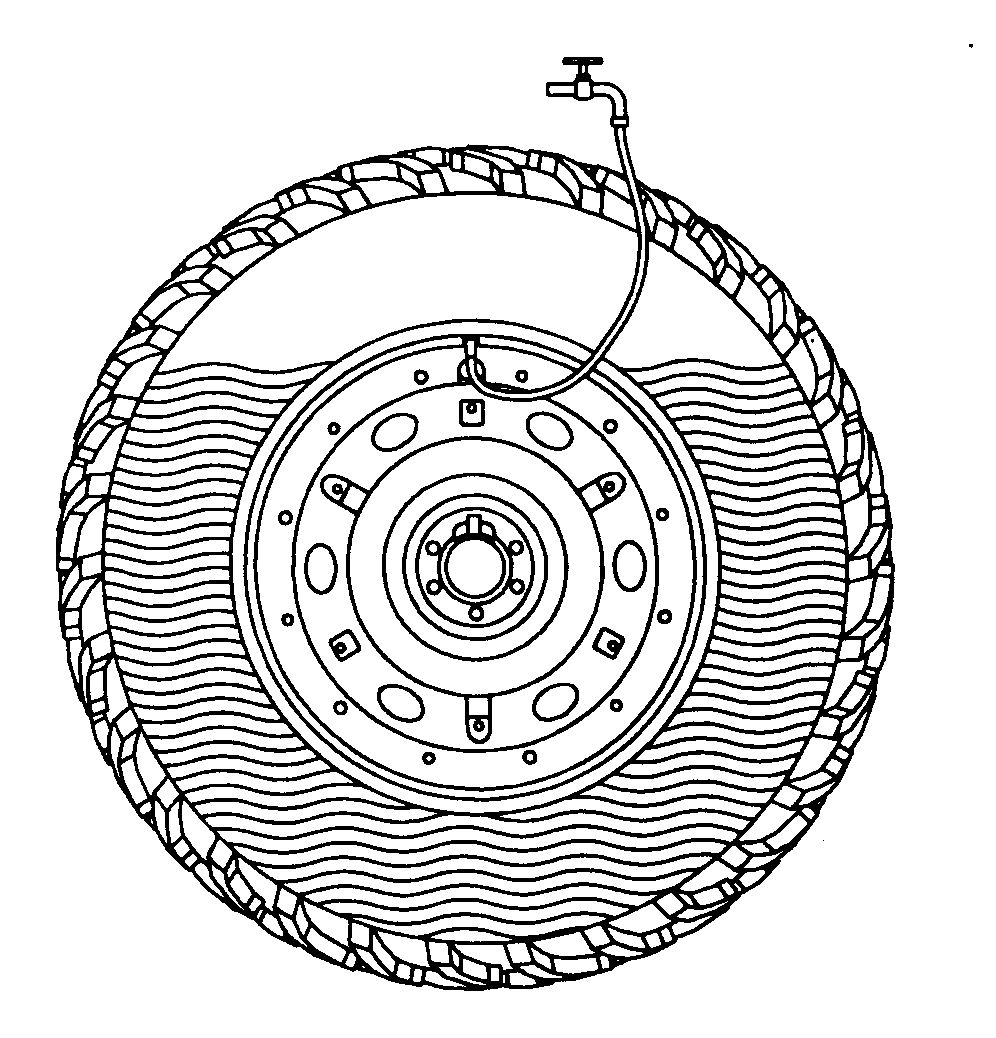

Use Liquid Weight

RW25003-UN-07JUL93

CAUTION: Installing liquid ballast requires special equipment and training. Have the job done by your John Deere dealer or a tyre service store.

IMPORTANT: NEVER fill tire to more than 75% full. More solution would leave too little air space to absorb shocks. Damage to tire could occur.

A solution of water and calcium chloride provides safe, economical ballast. Used properly, it will not damage tires, tubes, or rims.

Use calcium chloride to prevent water from freezing. A mixture of 0.6 kg per liter (5.0 lb of calcium chloride per gal) will not freeze solid above —45°C (—53°F).

Charts on this page show how much each tire size holds if filled to 75 percent full.

LIQUID WEIGHT FOR FRONT TIRES With 0.6 kg/L (5 lb/gal) Calcium Chloride Solution
Tire Size	Liquid Weight per Tire kg (lb)—75% Full
8.0 x 16, 4 PR	30 (67)

LIQUID WEIGHT FOR REAR TIRES With 0.6 kg/L (5 lb/gal) Calcium Chloride Solution
Tire Size	Liquid weight per Tire kg (lb)—75% Full
12.4 X 24, 4 PR	216 (478)
12.4 X 24, 8 PR	216 (478)
