Check Tightness of Hoses & Clamps (Fuel, Air & Cooling System)

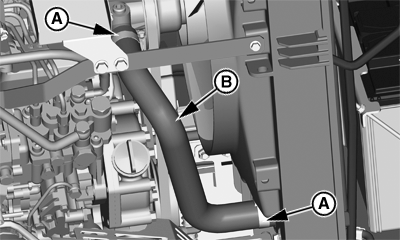

PY22038-UN-10FEB15

Radiator Hose, Bottom

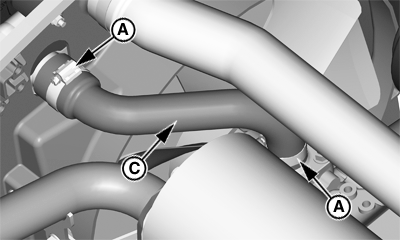

PY22039-UN-10FEB15

Radiator Hose, Top

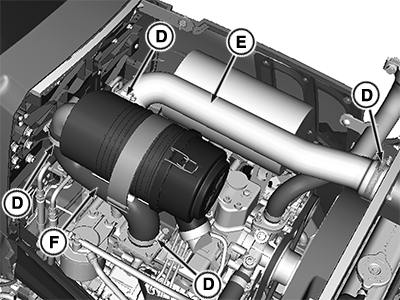

PY24522-UN-23JUL15

Air Filter-to-Intake Manifold

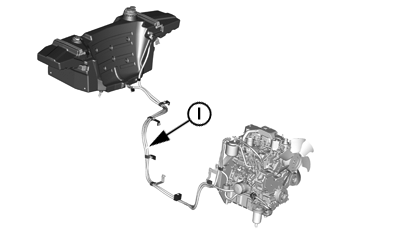

PY23300-UN-04MAR15

Fuel System

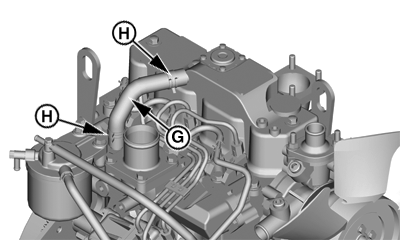

PY22041-UN-10FEB15

Engine Crankcase Vent Tube

APY36762-UN-22JUN20

ULSD Fuel Tank

A - Hose Clamp (4 Used)

B - Radiator Hose, Bottom

C - Radiator Hose, Top

D - Hose Clamp (4 Used)

E - Hose, Air Cleaner Inlet

F - Hose, Air Cleaner Outlet

G - Engine Crankcase Vent Tube

H - Hose Clamp (2 Used)

I - Hose, Fuel System

Check the following system hose clamps for tightness:

• Engine cooling system
• Air cleaner to engine intake
• Fuel system
• Engine crankcase vent tube

Check all hoses for cracks which could cause leaks or possible failure. Replace as necessary.
