Replacing Fuel Filter

1.

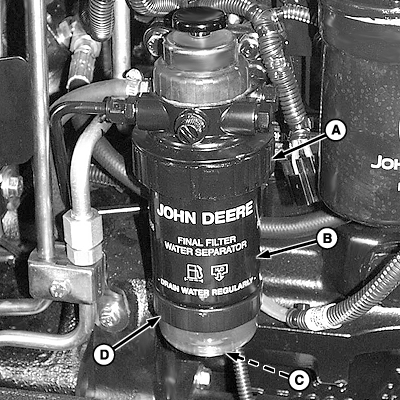

   LV9578-UN-06AUG04

   A - Retaining Ring

   B - Fuel Filter

   C - Drain Valve

   D - Water Separator

   Raise hood.

---




2. Open drain valve (C) and drain fuel.

3. Lift up and rotate retaining ring (A) counterclockwise. Remove ring with filter (B).

4. Remove separator (D) from filter.

   1. Drain and clean separator. Dry with compressed air.

   2. Install water separator on new filter.

5. Install new filter assembly. Tighten retaining ring hand-tight.

6. Bleed the fuel system. (See Bleeding Fuel System in Section 65.)
