Check Implement-to-Tire Clearance
IMPORTANT:
M47177-UN-31JAN92

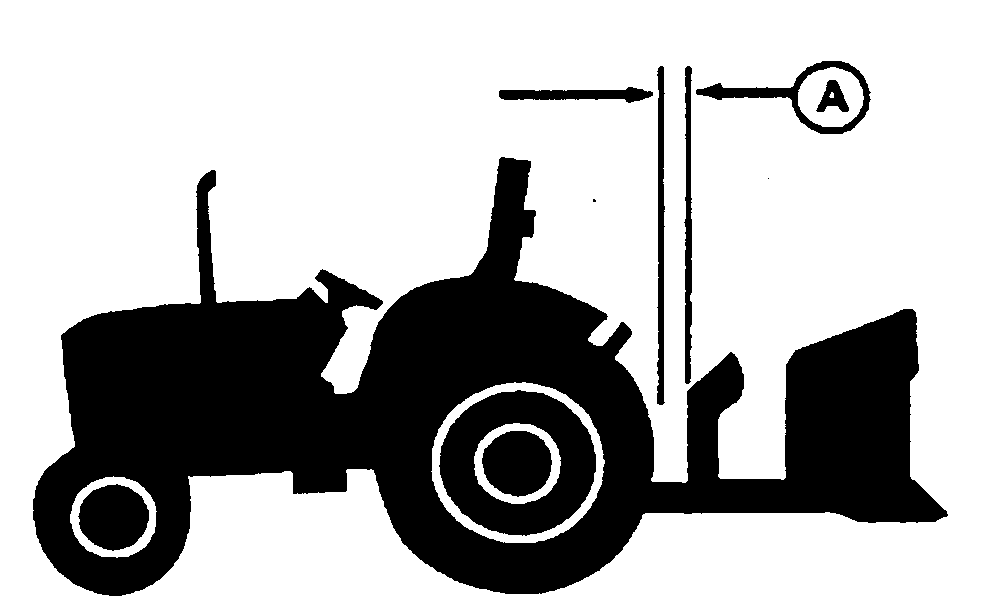

A - Clearance
Check for adequate clearance (A) between outside diameter of the tire and implement with hitch in the raised position.When large diameter rear tires are installed on a tractor with a 3-Point Hitch, a quick-coupler or similar device is required to provide the adequate implement-to-tire clearance.
|
